Aga eControl Series X-Squared Conversion
If you love your Aga but want it to work for modern life, our top-spec electric conversions fitted throughout Yorkshire offer smart control, quicker cooking, and energy efficiency, while keeping that traditional style right where it belongs.
eControl Series X Squared for Beginners
Now, if you’re a bit daunted by new gadgets, we’d like to assure you that eControl Series X Squared is very friendly for beginners. Even if you’re not technical, the intuitive dials, the clear displays and all other features make it a breeze to operate, while it’s not as easy as boiling a kettle, but we’ve had first-time Aga owners get the hang of it in no time, which is lovely to see.

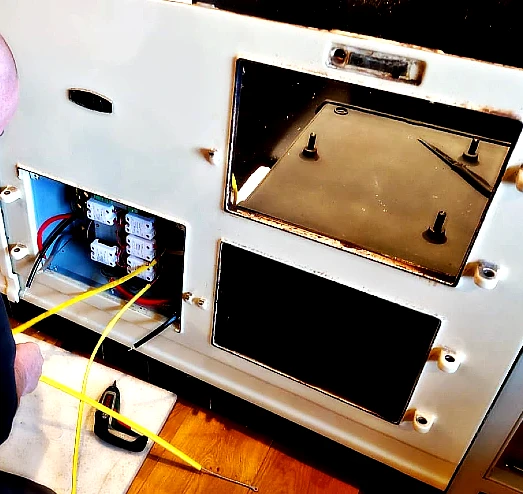

While We Fit: Refurbish or Choose a Reconditioned Model
While fitting your eControl Series X-Squared conversion, it’s the ideal moment to refresh an existing Aga: consider our Aga refurbishment service to restore every component to peak performance, or opt for our Aga re-enamelling service to renew the exterior finish and bring back that showroom sheen. If you’d rather replace entirely, our fully overhauled models are listed at transparent, straightforward prices, view our Reconditioned Aga Price List for full details.

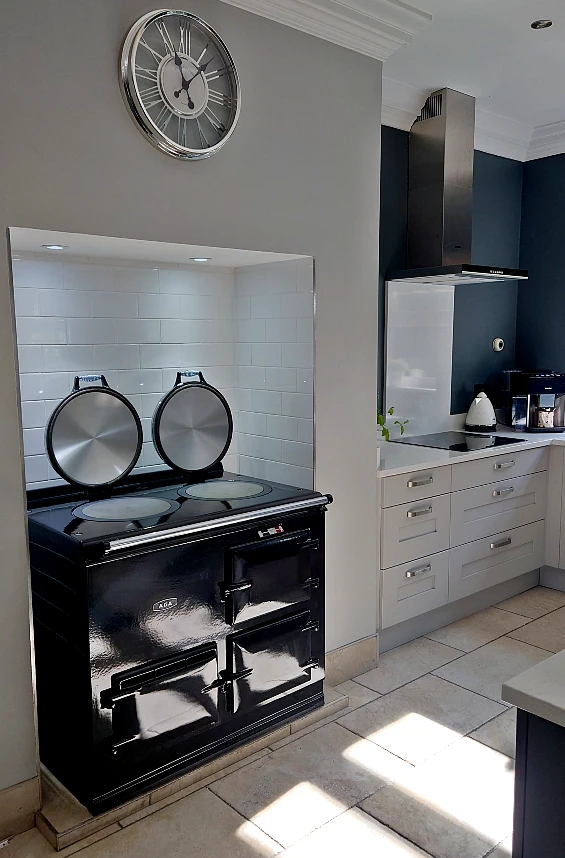

The Ultimate eControl conversion
At John Wray Range Cookers, we’re dedicated to extending the life and enhancing the performance of your cherished Aga. Our tailored Aga electric conversion options put you in control, whether you want to modernise an older model, reduce running costs or go greener. The eControl Series X-Squared conversion is one of our premium electric solutions, giving you precise zone control, rapid heat-up, and efficient performance, all while maintaining the familiar warmth, durability, and cooking excellence of your classic Aga.

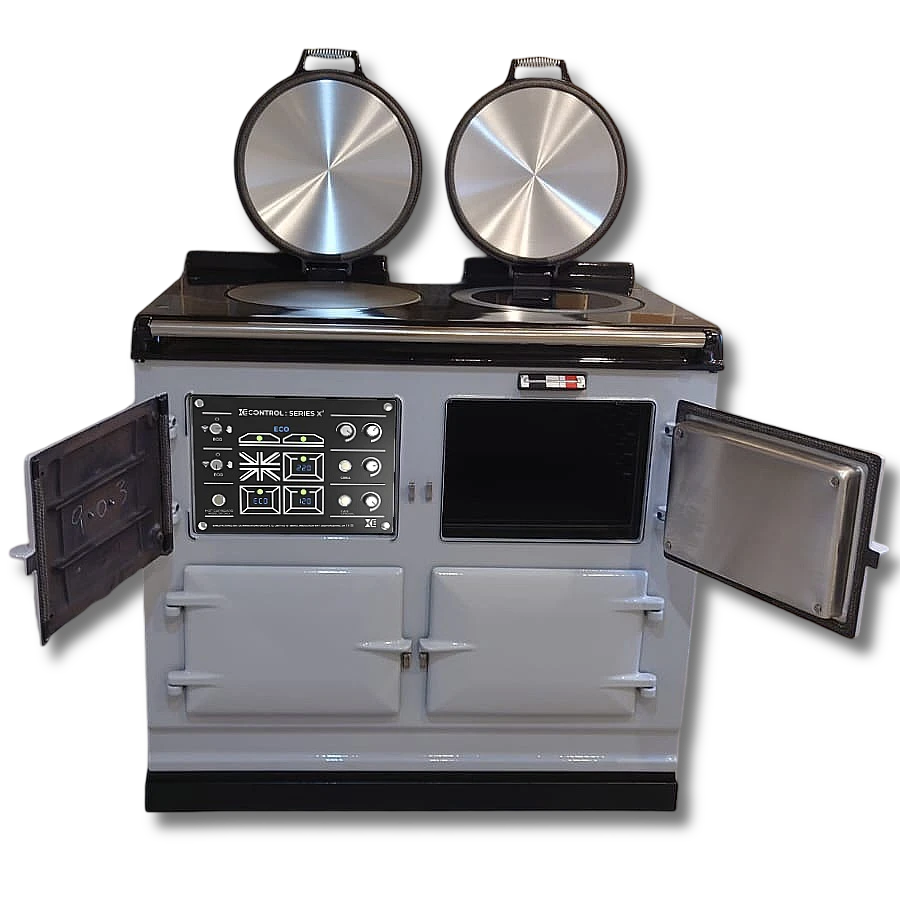

What is eControl Series X-Squared conversion?
The eControl Series X-Squared conversion upgrades your traditional Aga with state-of-the-art electric technology, replacing fuel-based components with precision electric heating elements. It retains the iconic cast-iron construction for consistent, radiant cooking while introducing rapid heat-up, reaching 220°C from ECO mode in just 8 minutes.
One of the best practices for using eControl Series X Squared is to take full advantage of its ECO mode and scheduling features. As Stuart says, “I often suggest setting the ovens to slumber (around 180°C) when you don’t need full heat, a bit like letting a stew simmer gently, so you save energy and still have warmth ready on tap.” Little habits like that ensure you get the most out of the system while keeping running costs low.
With advanced insulation and independent zone control, it cuts energy use significantly and gives you precise, efficient performance without losing the heart and soul of your original cooker.
eControl X-Squared Aga Conversion - Features
- Tri-Element Oven Heating System: Ensures even heat distribution.
- Independent Warming Plate: Separate, anodised warming plate, perfect for drying clothes or keeping dishes warm.
- Integrated Grill Mode: High-powered integrated grill function accessible through the main control panel or remotely via apps.
- Independent Zone Control: Set precise temperatures for each oven and hob independently.
- Advanced Diagnostics: Built-in diagnostics help identify and troubleshoot issues, ensuring smooth operation.
- Multiple Control Interfaces: Choose from wall-mounted touchscreen, smartphone app, Bluetooth handset, or X-Touch remote panel.
Multiple Control Options

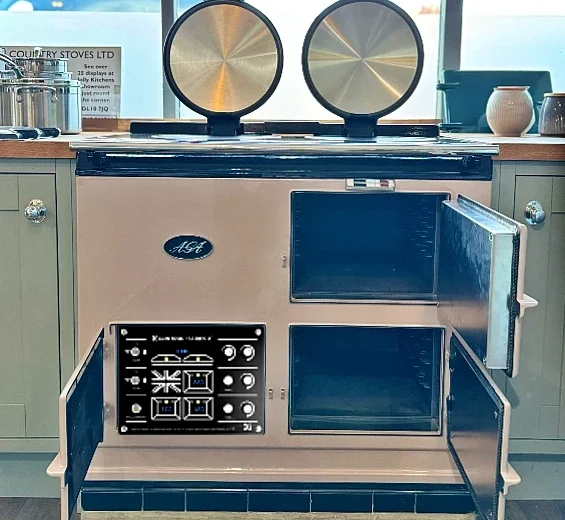

Tactile Rotary Dials
Classic knobs with integrated digital displays showing live and target temperatures for precise, repeatable heat control.
X-Touch Remote Panel
A worktop-mounted touchscreen that lets you set and monitor every oven and hob zone instantly from eye level.

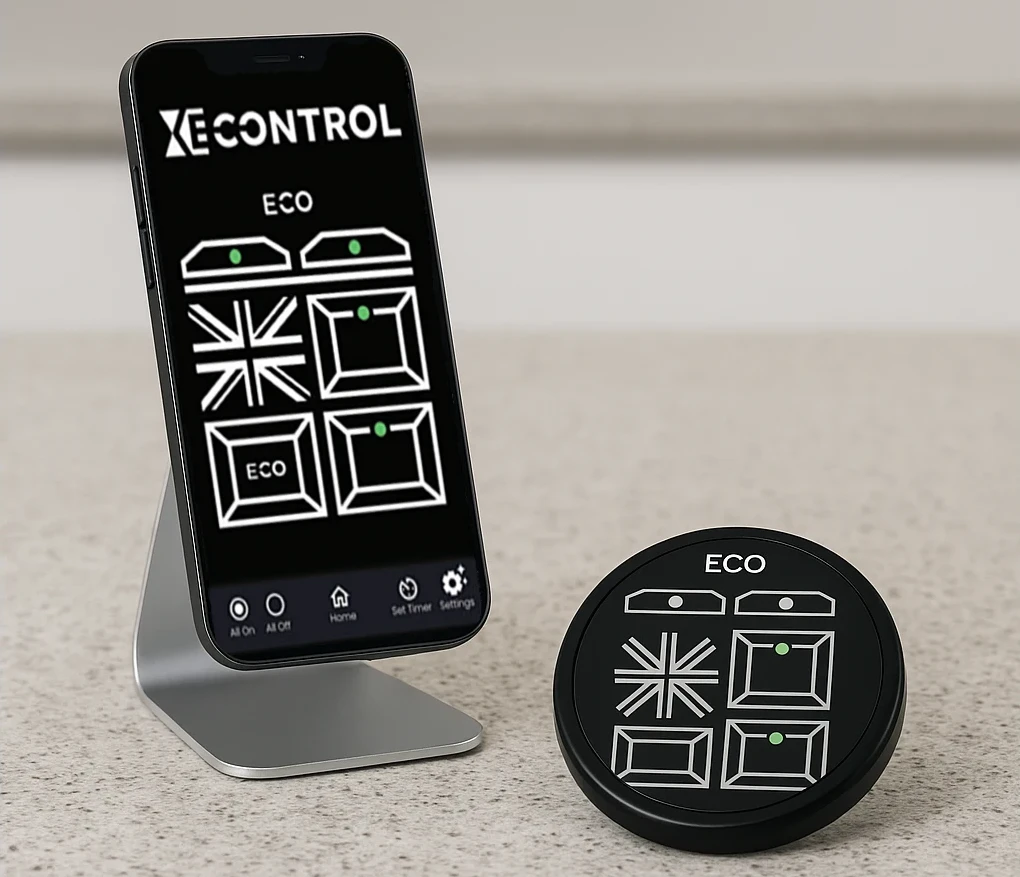

Wi-Fi App & Bluetooth Handset
Programme, pre-heat, and adjust any zone remotely via smartphone or handheld controller for true on-the-move convenience.

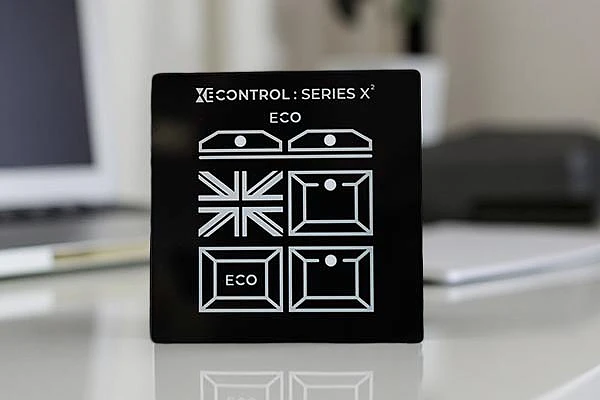

Wall-Mounted Controller
A compact panel fixed to the wall for one-touch ON/OFF control, no bending or opening the main door required.
Why Choose eControl Series X-Squared?
The Aga eControl Series X-Squared Conversion combines traditional aesthetics with cutting-edge technology to deliver exceptional cooking performance and unmatched convenience:
- Save Money & Energy: Zoned heating plus ECO mode cuts energy bills by up to 80%, saving an average of £1,000 to £2,000 annually.
- Rapid Heat-Up Times: Ovens reach cooking temperatures (200°C) in approximately 35 minutes, and hotplates reach boiling in just 14 minutes, significantly faster than traditional Agas.
- Eco-Friendly Operation: The advanced ECO mode automatically lowers temperatures during inactivity, substantially reducing energy consumption without compromising performance.
- Wi-Fi, App integration & Bluetooth Connectivity: Manage your cooker remotely via smartphone apps and Bluetooth handsets, ensuring convenience and flexibility wherever you are.
- Safety and Efficiency: Automatic temperature reduction after periods of inactivity, combined with improved insulation, ensures both safety and optimal efficiency.
- Five-Year Parts Warranty: Enjoy peace of mind with a comprehensive five-year parts warranty. For additional eControl Series X Squared warranty information, give us a call or drop us a message.
Hob Options and Other Upgrades
Cast Iron Hobs
UK-made cast iron plates are 20% larger than standard, individually ON/OFF controllable or self-regulating to maintain a cosy, consistent and efficient ambient heat.

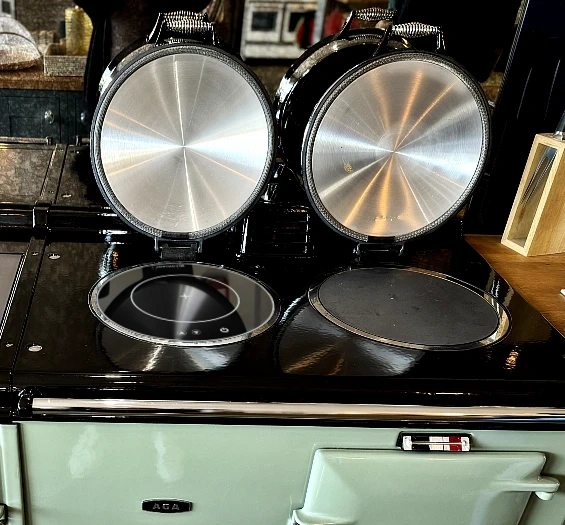

Inductaheat Hob
Swap a cast plate for the Inductaheat module to gain immediate, pinpoint temperature control with up to 90% energy transfer efficiency and minimal residual warmth.
Twin Instaheat Hotplates
Replace the warming plate on four-oven models with two independent instant-heat zones, allowing simultaneous cooking at different temperatures without cross-interference.
Independent Warming Plate
Upgrade to an independently controlled warming plate. Perfect for keeping dishes warm without using the ovens. A smart, energy-saving feature you’ll rely on every day.
Pizza-Plate
Seamless design that fits perfectly into your eControl system, combining function with a sleek look and dedicated heat distribution for crispy pizzas, breads, and flatbreads.
Technical Specifications of eControl Series X-Squared
The eControl X Squared specifications (PDF opens in a new tab): From robust heating elements to a clever control panel, everything is designed to make your Aga more efficient and responsive. The eControl Series X-Squared Aga Conversion delivers precision cooking through smart engineering. Each oven uses a tri-element system for rapid, even heat, while 350mm machined steel hobs offer serious surface space for large cookware.
eControl Series X-Squared Heat-up Times
| Appliance | Heat-Up Details | Time |
|---|---|---|
| Top Oven | To 180 °C | 35 minutes |
| To 200 °C | 38 minutes | |
| To 220 °C (room temp / from ECO mode) | 43 minutes / 8 mins | |
| Hobs | Instaheat zone ready | Instantly |
| To full temperature (from ECO mode) | 5 minutes | |
| To cooking temperature (from room temp) | 8 minutes | |
| To boiling temperature (from room temp) | 10 to 12 minutes |
Temperature Range of eControl X-Squared
| Component | Temperature Range / Setting |
|---|---|
| Oven Temperatures | |
| Top right-hand side oven | 0 to 265°C |
| ECO mode (Top right-hand oven) | 180°C |
| Bottom right-hand side oven | 0 to 220°C |
| Bottom left-hand side oven (3 oven model) | 220°C |
| Hob Temperatures | |
| Right-hand side hob | 0 to 370°C |
| Left-hand side hob | 0 to 370°C |
| ECO mode (Right-hand hob) | 165°C |
| ECO mode (Left-hand hob) | 200°C |
| Hot Cupboard Temperatures (4 Oven Model Only) | |
| Simmering oven | 120°C |
| Warming oven (passive) | 80°C |
eControl Series X-Squared Electrical Requirements
Power Supply
- Voltage: 230 V single-phase
- Breaker: 32 A standard / 40 A with Instaheat
- Power Draw: 6 kW to 9.25 kW depending on model
eControl Series X: performance comparison of models
| Model | Power (Standard) | Breaker | Power (Instaheat) | Breaker |
|---|---|---|---|---|
| 2-Oven | 6 kW | 32 A | 7 kW | 40 A |
| 3-Oven | 7.5 kW | 40 A | 8.5 kW | 40 A |
| 4-Oven | 6.75 kW | 32 A | 7.75 kW | 40 A |
| 5-Oven | 8.25 kW | 32 A | 9.25 kW | 40 A |
eControl Series X-Squared Running Cost
The eControl Series X-Squared is designed to be energy-efficient without compromising cooking performance. Here’s a simple breakdown of its running costs:
- Using the ovens once a day (including pre-heat and cooking) uses about 2.41 kWh per day.
- Using the ovens twice a day increases this to around 4.21 kWh per day.
- In ECO Mode (ideal for baking and warming), ovens use roughly 0.26 kWh per hour.
- Roasting and simmering range between 0.27 kWh and 0.43 kWh per hour, depending on temperature.
- The boiling hob consumes about 0.48 kWh per hour when in use.
- Simmering on the hob in ECO mode uses about 0.39 kWh per hour, or 0.40 kWh if both hobs run simultaneously in ECO mode.
This means the system is efficient, especially when using ECO modes and timing your cooking to minimise energy use.
Upgrade Your Aga Today!
Contact John Wray Range Cookers today to find out more, request a consultation, or schedule your eControl Series X-Squared conversion and enjoy the perfect blend of tradition and technology in your kitchen.

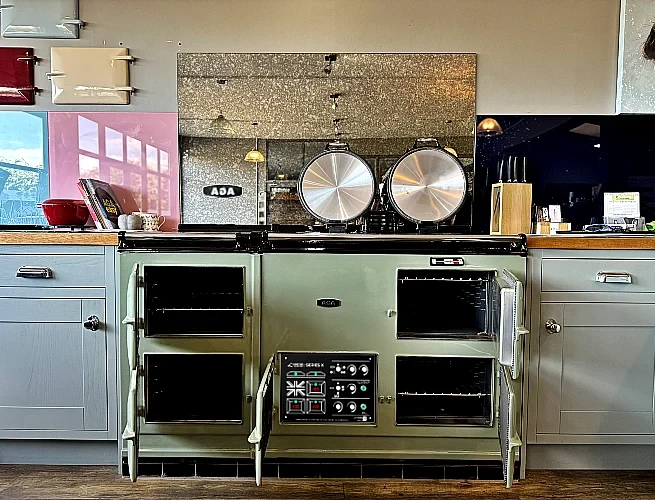

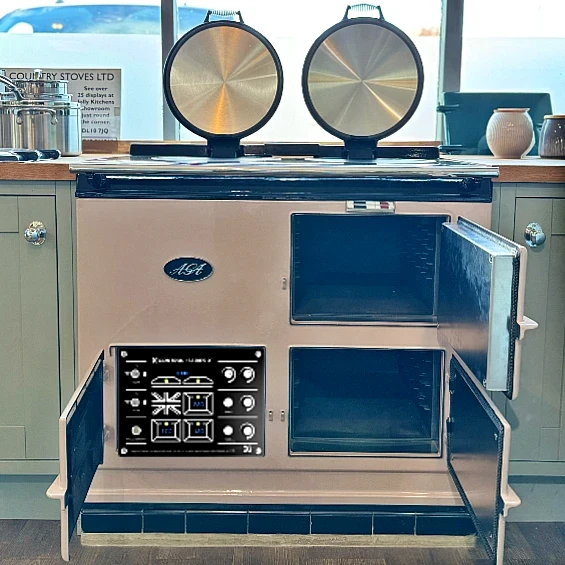

Visit Our Aga Showroom in Yorkshire
At John Wray Range Cookers, we’ve been working with Aga cookers since 1990, servicing, reconditioning, and restoring them to top condition. As electric conversion technology has evolved, we’ve stayed ahead of the curve, now offering advanced systems like the eControl Series X-Squared alongside other trusted Aga Electric Conversion options.
Our showroom is open by appointment only, so we can give you one-to-one advice. Whether you’re upgrading an oil, gas, or old electric Aga, we’ll help you find the right conversion, with no rush and no pressure, just straight-talking expertise.
At John Wray Range Cookers, we’ve specialised in Aga conversions and reconditioning since 1990. With decades of experience, we know how important it is to find the right solution for your home and your cooker.
That’s why our showroom is open by appointment only, so we can take the time to understand your existing setup and guide you through the best conversion options, with no rush and no pressure.
eControl Series X-Squared vs Series X
The eControl Series X-Squared Aga Conversion is the most advanced electric system for Aga cookers. It offers Wi-Fi and Bluetooth connectivity, app scheduling, a modern X-Touch controller, and optional upgrades like grill mode, InstaHeat, and InductaHeat hobs. With faster oven heat-up (to 200°C in about 43 minutes), improved insulation, and precise zone control, it delivers modern performance while preserving classic Aga style.
The eControl Series X delivers the same core benefits, electric efficiency and independent zone control, but with a more traditional interface using rotary dials and digital displays. It’s ideal for those who prefer hands-on control without the need for smart features.
In terms of eControl Series X Squared applications, this conversion is wonderfully versatile. If you want app-based convenience and automation, go for Series X-Squared. If you prefer classic, tactile controls, Series X is a solid choice.
eControl Series X ConversioneControl Series X-Squared Aga Conversion Prices
We believe in fair pricing, and while doing an eControl Series X Squared price comparison is always wise, you’ll find our offering very competitive given the quality and service included. We offer transparent pricing for the eControl Series X-Squared Aga Conversion, tailored to your Aga model and configuration:
- 2-Oven Aga Conversion: £4,350
- 3-Oven Aga Conversion: £4,750
- 4-Oven Aga Conversion: £4,750
All prices include VAT and professional installation. Please note that final pricing may vary slightly depending on the condition of your cooker and your location.
For detailed pricing, visit our dedicated Aga Electric Conversion Cost page.
Aga Electric Conversion Prices
eControl Series X-Squared Conversion Reviews
You might have searched for an eControl Series X Squared review, especially when it first came out. Our customers have been singing its praises in feedback. Many Aga owners right here in Yorkshire said that it’s transformed their cooking routine for the better, giving a traditional cooker a truly modern twist, and our 5-star reviews speaks for itself!
T
Love my new AGA, Stu and Jen great help with deciding which one we wanted
Read more R
Delighted with our reconditioned Aga. Stuart and Jen very helpful and informative re choice. The electrokit model looks great in our kitchen. Kyle and Ben who travelled to our home in Ayrshire to fit the Aga very knowledgeable. The Aga was fitted efficiently and was up and running in a couple of hours. Many Thanks guys!
Read more K
Very impressed, professional, courteous, prompt service , thank you
Read more D
This was our second Aga we purchased from John Wray. The Aga and installation were perfect. Ben noticed an imperfection with the top which we did not notice and came back and replaced it for us. Would recommend them.
Read more D
John Wray impressive all through the process. Oil Aga converted to Electricity Advanced - this was done effectively and tidily. Easy to operate both manually and by timer (through phone App). Induction hob a big plus. Thank you
Read more C
Excellent service from our visit to the showroom to the post conversion. All the staff have been helpful. The conversion day was quick, tidy and clean. Like clockwork. Thank you.
Read more M
The service provided by John Wray was exceptional. I had considered buying a new Aga but am so pleased I decided to have it re enamelled instead - it looks brand new!
Read more S
Great service, good communication, very professional and clean and tidy. Took time to explain everything clearly. All very straight forward would highly reccomend John Wray Country Stoves
Read more E
We had an Aga from John Wray in our last house, and have bought another from them now that we have moved. A great company to deal with, absolutely delighted with both the Agas that we bought from them. After sales service is also top notch. Highly recommended.
Read more L
Very pleased with my wood burning stove, the installation went smoothly and there was no mess whatsoever. They’re very helpful and friendly. Highly recommend the service from start to finish was excellent.
Read more S
We had the innards of our oil-fired classic Aga replaced with the amazing Electrikit Advanced system. Brilliant, simple and no more oil smells in the kitchen! The service was marvellous from beginning to end: informative, efficient and quick. Stuart and Ben made short work of the conversion, were great to have around and did a thorough clean-up afterwards. We are very pleased.
Read more B
Stopped for a warm and a Sausage sandwich while out on a bike ride
Read moreShowing our 12 most recent Google reviews, newest first. No filtering by rating. Read all 112 on Google.
Aga eControl X-Squared Conversion FAQs
Where can I buy a reconditioned eControl Series X Squared?
If you’re wondering where to buy eControl Series X Squared, you’re already in the perfect place. Not only do we specialise in fitting this conversion for Aga cookers, you can also arrange to book an appointment to purchase a reconditioned Aga with us, it’s like coming straight to the bakery for the freshest bread!
Is there an instruction manual for the X Squared?
Yes, every Series X Squared electric conversion comes with one for your reference. Please click the following link to download a pdf version: eControl Series X Squared manual for your reference.
Is eControl Series X Squared worth buying?
If you love your Aga but crave modern efficiency, the eControl Series X Squared is worth every penny. It’s an investment that pays back in flexibility, energy savings, and the simple joy of having total control over your cooker. In other words, you keep the heart of your kitchen while making it far easier to live with, a win-win!
Is eControl Series X Squared troubleshooting something you assist with?
If ever things go a bit wonky, the eControl Series X Squared manual will help you sort things out in no time. We’re always just a phone call away, but most issues can be resolved with a quick peek at the guide, bit like when you check t’recipe just to make sure you’re not making a dog’s dinner of it.
Which Aga models is this conversion compatible with?
It fits most Aga heat storage cookers available on the market, including 2, 3, and 4 oven models. The system allows full control over ovens, hotplates, warming plates, and hot cupboards where applicable.
